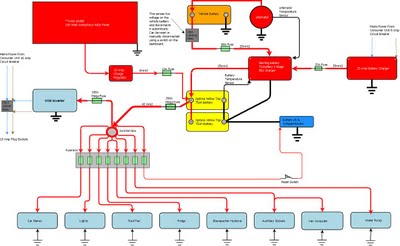

I'm planning to add some more detailed information on wiring soon and I thought I'd start by adding a diagram of how my van is currently wired up. I've not included the switches for items which require them such as lights but these items are all switched on the ground (negative) wire.
2 Comments:
I really enjoy your Blog. Doing a T4 conversion myself. I have to ask though. 250A fuse off the Yellow top battery and 40mm cable? Is this really required?
Well, in theory I could pull about 200 amps if everything was on and I was using the inverter so its necessary really.
