Trial fitting of Multivan Seats

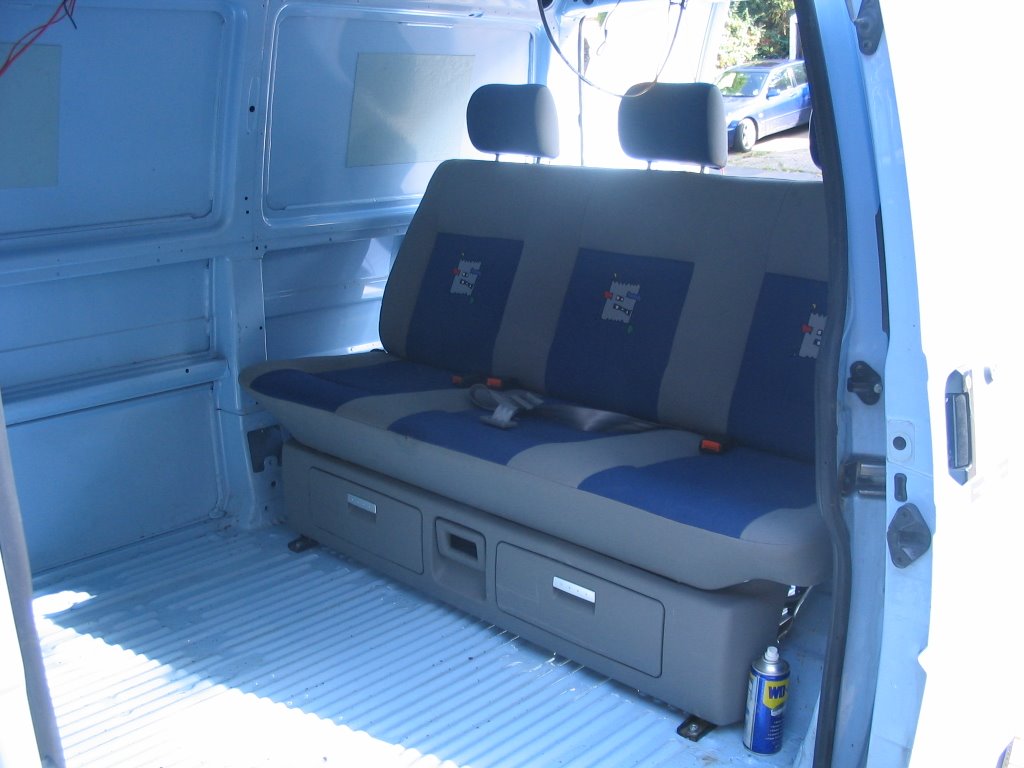

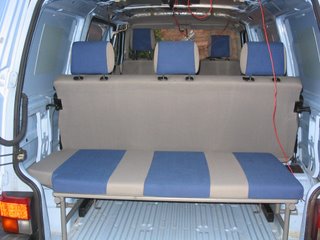

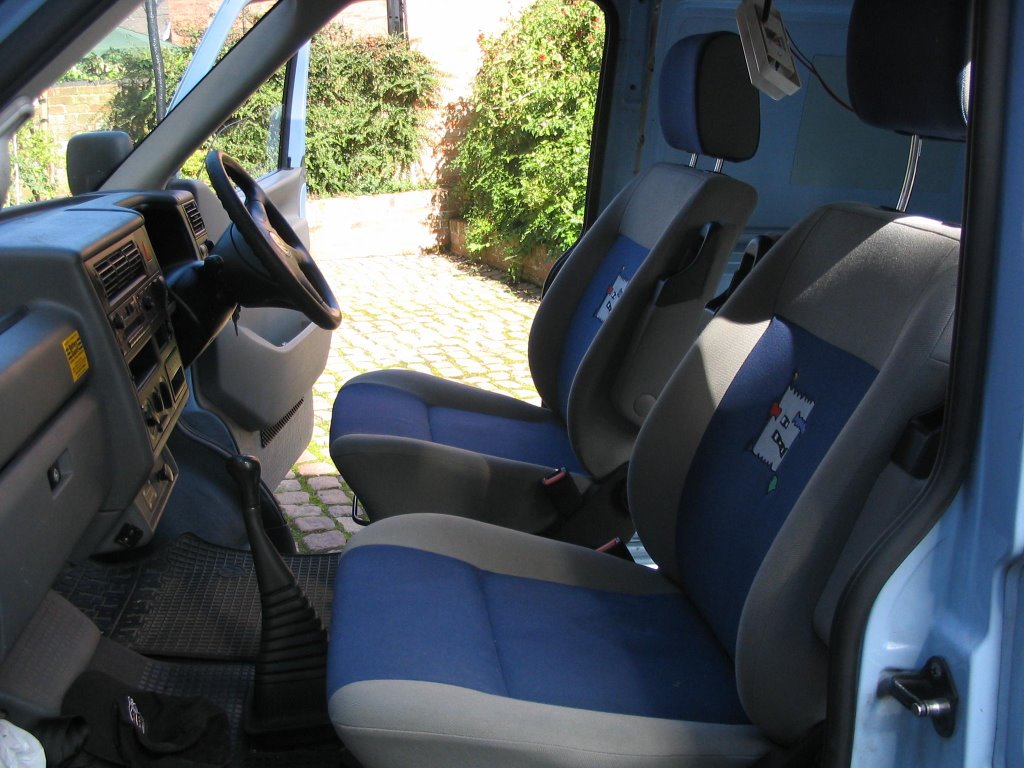

I did a trial fitting of the rear multivan seat and matching front seats in the van today, it only took about half an hour to fit the rear seat. I had to drill a couple of extra holes in the van floor and utilise some captive nut plates which I obtained from VW. The seat then bolts down using these and the middle load lashing points, the rear shelf bolts through the rear load lashing points and I need to get some plates welded to the wheel arches to attach to also. There are a couple of u shaped brackets which have to bolted the side to support the seat back.

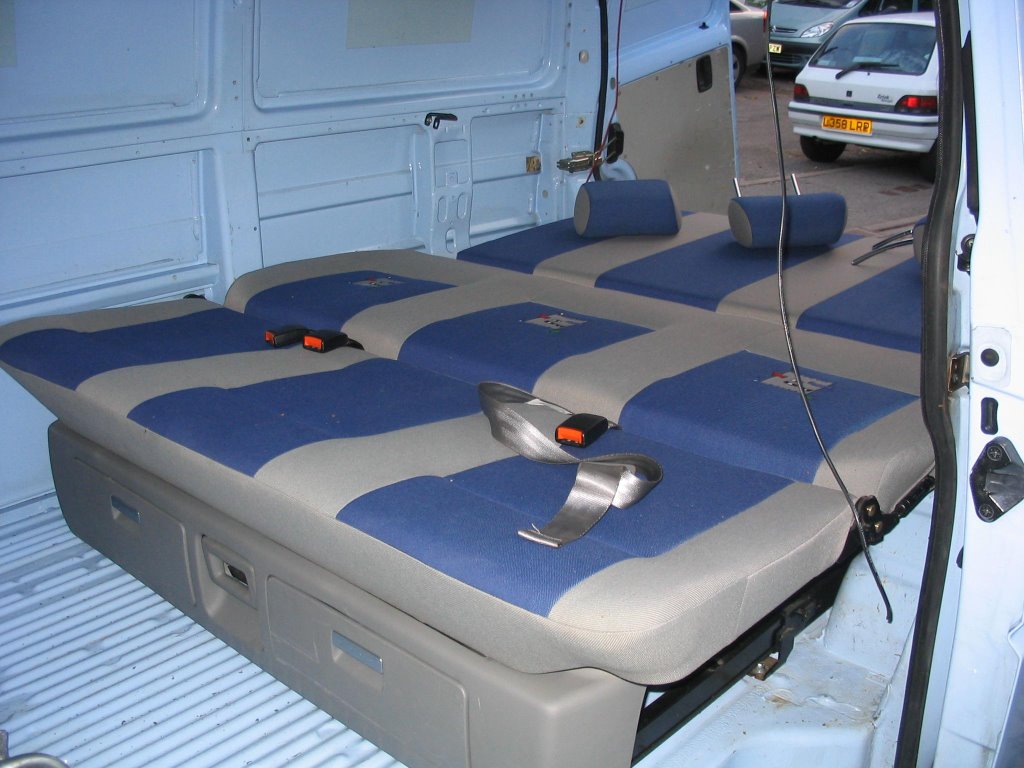

Measured the position of the seat and there is only room for a 57cm unit when the bed is in sleep position, there is 125cm when its in seating position. So I'm going to have to have a good think about how I'm going to fit a hob and sink in this space. There are 3 choices make the unit just with a sink and use a small cartridge stove on a shelf at the side (These are available on ebay from Germany). I could build a unit that can swivel out of the way at night or have unit with an overhang at one side.
Measured the position of the seat and there is only room for a 57cm unit when the bed is in sleep position, there is 125cm when its in seating position. So I'm going to have to have a good think about how I'm going to fit a hob and sink in this space. There are 3 choices make the unit just with a sink and use a small cartridge stove on a shelf at the side (These are available on ebay from Germany). I could build a unit that can swivel out of the way at night or have unit with an overhang at one side.
1 Comments:
Hi clive,
My name is dan, iv just purchased a T4 with the idea of converting it. Iv been finding your blog pretty inspiring! i was just wondering where you got your fold down seats for the back? i would love to have something similar in mine. I was going to make my own, but after seeing yours I'm having a rethink.
Thanks for your time, Kind regards dan
